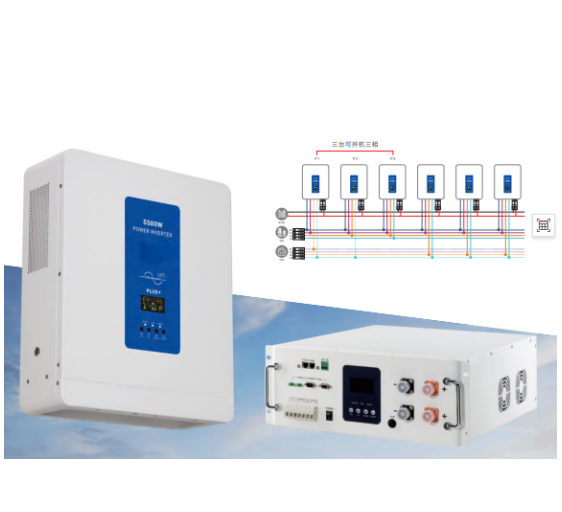

Model

Daya-PW plus

Daya-PC plus

Rated frequency

5500W

Standard battery voltage

48VDC

Installation methodd

Wall mounting

Rack/cabinet installation

Photovoltaic parameters

Working mode

MPPT

Rated photovoltaic input voltage

360VDC

MPPT tracking voltage range

120-430V

Maximum photovoltaic input           voltage (VOC)

450V

Max PV Input Power

5500W

Number of MPPT tracking channels (number of input channels

111WAY

DC input voltage range

42-60VDC

Rated mains input voltage

220/230/240VAC

Mains power input voltage range

90~280VAC (UPS mode)

Mains power input frequency rangee

40~70Hz

output

INVERTER

Output efficiency

94%

Output voltage

220VAC±2%/230VAC±2%/240VAC±2%

Output frequency

50Hz±0.5或60Hz±0.5

Mains power

Output efficiency

≥99%

Output voltage       range

Follow input

Output frequency   range

Follow input

No-load loss in battery mode

≤1%(rated power)

Mains mode no-load loss

0.5% rated power (mains charger does not work)

Battery

type

Lead acid battery

Average charging voltage 56.6V Float charging voltage 54V (single cell voltage)

Custom battery

Different types of battery charging and discharging parameters can be customized according to user requirements (different types of batteries can also be set through the operation panel)

Maximum PV input current

60A

Maximum photovoltaic charging       current

80A

Maximum mains charging current

80A

Maximum charging current (mains + photovoltaic)

Charging method

Three-stage type (constant current, constant voltage, float charge)

Battery voltage alarm

Factory default setting: 44V

Battery voltage protection

Factory default setting: 42V

Battery over-voltage alarm

61VDC

Overload power protection

Automatic protection (battery mode), circuit breaker or fuse (mains mode)

Inverter output short circuit               protection

Automatic protection (battery mode), circuit breaker or fuse (mains mode)

temperature protection

≥90℃ turns off the output

Performance parameters

conversion time

≤10ms

Heat dissipation method

Intelligent fan control

Working environment temperature

-10~40℃

storage temperature

-15~60℃

Altitude

2000m

relative humidity

0~95%

Product size

460*304*110mm

440*480*225mm

Packing size

526*384*198mm

500*540*245mm

Net weight

9.5kg

9.5kg

Gross weight

10.5kg

10.5kg
