Overview

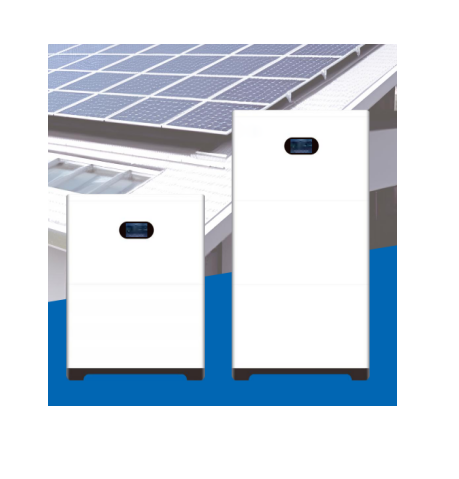

Daya's series of high-use energy storage products uses high-quality square aluminum shell lithium iron phosphate batteries and is equipped with an intelligent BMS battery management system, which has long cycle life. It has high safety performance, beautiful appearance, free combination and easy installation. The battery pack is equipped with a touch LCD display to visualize operating data. Adapt to most Brand photovoltaic inverter and be able to communicate with it. It is widely used in distributed photovoltaic systems and home energy storage systems. For home, industry, business, agriculture and other electrical equipment to provide efficient clean energy.
Parameter
Product model | -2 Daya-L5 | Daya-L10 |
Product specifications | 51.2V100Ah | 51.2V200Ah |
Combinable methods | 3 layers stackable parallel connection | A single group can be independently connected to 15 groups in parallel. |
Battery pack capacity | 5.12kWh | 10.24kWh |
Standard discharge current | 50A | 100A |
Maximum discharge current | 100A | 105A |
Operating voltage range | 43.2-57.6VDC | |
Standard voltage | 51.2VDC | |
Maximum charging current | 50A | |
Maximum charging voltage | 57.6V | |
Discharge depth and life | 80%/25℃/0.5C/6000 cycles, energy retention rate ≥80% | |
Working humidity | 65±20%RH | |
Operating temperature | 0~+40℃ | |
Working altitude | ≤2500m | |
Firefighting | PACK 12g Aerosol | |
Cooling method | Natural cooling | |
Installation method | Standalone installation | |
Communication method | RS485/RS232/CAN optional WiFi/4G/Bluetooth | |
Warranty | 5~10 years | |
Protection level | IP20 | |
Product certification | CEROHS FCC UN38.3 MSDS ISO9001 | |
Product size | 630*380*150mm | 630*500*150mm |
Packing size | 690*440*220mm | 690*560*220mm |
net weight | 45kg | 90kg |
Gross weight | 51kg | 96kg |
