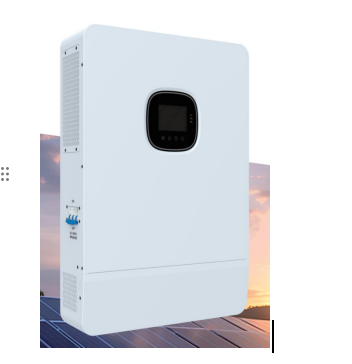

PT three-phase output hybrid photovoltaic storage inverter has segmented charging and discharging functions, is equipped with an anti-backflow device, has a built-in MPPT controller, and adopts a fully digital Double closed-loop control of voltage and current, advanced SPWM technology, pure sine wave output. With insulation resistance and leakage monitoring, any mains/photovoltaic power supply.
The lithium battery can be activated when the source is connected, and supports use without batteries. Energy-saving mode can be set to reduce no-load losses. Photovoltaic mode and photovoltaic priority are optional.It has 4 modes: mains priority and hybrid charging. It has two output modes: mains bypass and inverter output, and has UPS uninterruptible power supply function. suitable used in distributed photovoltaic, home energy storage, commercial energy storage and other projects.
Product technical parameters | |||
Model | PT8K | PT10K | PT12K |
Rated output power | 8000W | 10000W | 12000W |
Maximum peak power | 16000W | 20000W | 24000W |
Rated output voltage | 400Vac(three-phase) | ||
Load motor capacity | 5HP | 6HP | 6HP |
Rated frequency | 50/60Hz | ||
Output waveform | pure sine wave | ||
switching time | 10ms(Typical value) | ||
DC battery parameters | |||
Battery Type | Lithium-ion battery pack/lead-acid battery/custom | ||
Rated battery voltage | 48VDC | ||
voltage range | 48VDC-60VDC±0.6VDC(Undervoltage alarm/Shutdown voltage/Overvoltage alarm/Overvoltage recovery- | ||
Maximum photovoltaic charging current | 180A | 220A | 260A |
Maximum mains/ generator charging current | 100A | 120A | 120A |
Maximum hybrid charging current | 180A | 220A | 260A |
PV photovoltaic parameters | |||
Number of MPPT channels | 2way | ||
Maximum input power | 6000W+6000W | 7500W+7500W | 9000W+9000W |
Maximum input current | 22A+22A | ||
Maximum open circuit voltage | 800VDC+800VDC | ||
MPPT operating voltage range | 200-600VDC | ||
AC Mains Generator Parameters | |||
Input voltage range | phase voltage170-280Vcable voltage305-485V | ||
Input frequency range | 50/60Hz | ||
Bypass flow current | 63A | ||
Inverter efficiency | |||
MPPT tracking efficiency | 99.9% | ||
Battery inverter maximum efficiency | 292% | ||
Communication method | |||
Built-in interface | RS485/CAN/USB/Drycontact | ||
External module (optional) | Wi-Fi/GPRS | ||
Basic parameters | |||
product size | 620*445*130mm | ||
product weight | 27kg | ||
Protection level | IP20 only supports indoor installation | ||
ambient temperature | -10-55℃,>45℃ | ||
noise | 560dB | ||
Cooling method | air cooling | ||
