Model

Daya-PW3200

Daya-PW5500

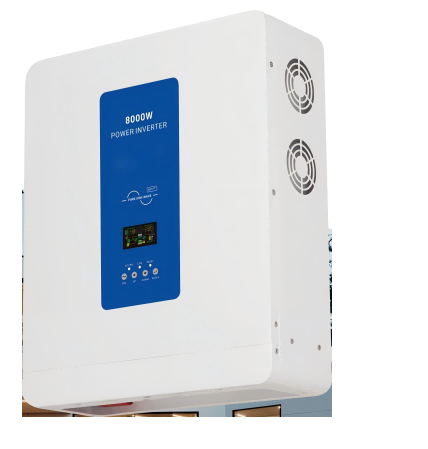

Daya-PW8000

Daya-PW11000

Rated voltage

3200W

5500W

8000W

11000W

Standard battery voltage

S24VDC

48VDC

Installation methodd

Wall mounting

Photovoltaic parameters

Working mode

MPPT

Rated photovoltaic input    voltage

360VDC

MPPT tracking voltage       range

120-500V

Maximum photovoltaic      input voltage (VOC)

500V

Max PV Input Power

4000W

5500W

5500W+5500W

Number of MPPT tracking channels (number of input channels

111WAY

2 WAY

Input

DC input voltage range

21-30VDC

42-60VDC

Rated mains input voltage

220/230/240VAC

Mains power input voltage range

170~280VAC (UPS mode)/120~280VAC (inverter mode)

Mains power input              frequency range

40~55Hz(50Hz) 55~65Hz(60Hz)

Output

Inverter

Output       efficiency

94%

Output       voltage

220VAC±2%/230VAC±2%/240VAC±2%

Output        frequency

50Hz±0.5或60Hz±0.5

Mains power

Output       efficiency

≥99%

Output       voltage       r ange

Follow input

Output        frequency   range

Follow input

No-load loss in battery      mode

≤1%(rated power)

Mains mode no-load loss

≤0.5% rated power (mains charger does not work)

Input (battery/photovoltaic/mains power

Battery

type

Lead acid    battery

Average charging voltage 13.8V Float charging voltage 13.7V (single cell voltage)

Custom      battery

Different types of battery charging and discharging parameters can be customized according to user requirements (different types of batteries can also be set through the operation panel)

Maximum PV input            current

18A

18A

18A

18A

Maximum photovoltaic      charging current

60A

120A

150A

Maximum mains charging current

100A

100A

100A

120A

Maximum charging current (mains + photovoltaic)

100A

100A

120A

160A

Charging method

Three-stage type (constant current, constant voltage, float charge)

protected mode

Battery voltage alarm

Battery voltage protection value +0.5V (single battery voltage)

Battery voltage protection

Factory default value: 10.5V (single battery voltage)

Battery over-voltage alarm

Average charging voltage +0.8V (single cell battery voltage

Battery over-voltage          protection

Factory default value: 17V (single battery voltage)

Battery over-voltage           recovery voltage

Battery over-voltage protection value -1V (single battery voltage)

Overload protection/short  circuit protection

Automatic protection (battery mode), circuit breaker or fuse (mains mode)

temperature protection

≥90℃ turns off the output

Performance parameters

conversion time

≤4ms

Heat dissipation method

Intelligent fan control

Working environment         temperature

-10~40℃

storage temperature

-15~60℃

Altitude

2000m

relative humidity

0~95%

Product size

420*290*110mm

460*304*110mm

520*450*200mm

Packing size

486*370*198mm

526*384*198mm

580*510*260mm

Net weight

8.5kg

9.5kg

17kg

Gross weight

9.5kg

10.5kg

19kg
