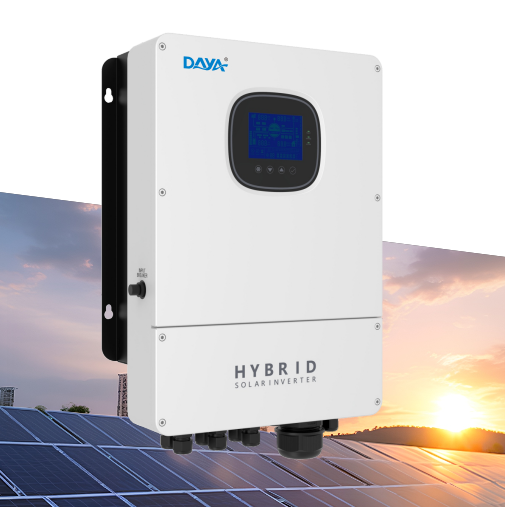

Inverter has the function of segmented charging and discharging,backflow prevention and grid connection function.working without battery under special conditions.lithium battery activation function, which can be triggered by mains or PV.Four charging modes: PV Only, Mains Priority, PV Priority and PV&Mains hybrid charging.Two output modes: mains bypass and inverter output, with UPS function.Adopting full-digital double closed loop control, combined with advanced SPWM.Advanced MPPT technology with efficiency of 99.9%.LCD screen and three LED lights can clearly indicate the status and data.Intelligent and variablespeed fan, efficiently dissipate heat and extend system life.Multiple safety protection functions: short circuit protection, overload protection, reverse polarity protection and so on.
Product basic technical parameter | |
Model | PI Series |
Rated power | 5500W |
Standard battery voltage | Lead-acid Battery or Lithium Battery48VDC |
Battery voltage range | 40VDC~60VDC ± 0.6VDC (Undervoltage/Shutdown Voltage/Overvoltage /Overvoltage Recovery Warning |
Hybrid charging MAX charging current | 100A |
Installation method | Wall mount |
PV INPUT PARAMETERS | |
MaxPV Open-circuit Voltage | 500VDC |
PV Working Voltage Range | 120-500VDC |
MPPT Voltage Range | 120-450VDC |
Max PV Input Current | 22A |
Max PV Input Power | 600W |
Max PV Charging Current | 100A |
AC INPUT PARAMETERS | |
Mains Max Charging Current | 60A |
Rated Input Voltage | 220/260VAC |
input Voltage Range | UPSMains Mode：(170VAC~280VAC)±2% APL Generator Mode：(90VAC-280VAC)±2% |
Frequency | 50Hz/ 60Hz (Automatic Detection) |
Mains Charging Efficiency | ＞95% |
Switch Time (bypass and inverter) | 10ms(Typical Value) |
Max Bypass Overload Current | 40A |
ACOUTPUTPARAMETERS | |
OutputWaveform | PureSineWave |
RatedOutputVoltage (VAC) | 230VAC 200/208/220/240VAC |
RatedOutputPower (VA) | 6600VA |
RatedOutputPowe (W ) | 5500W |
PeakPower | 11000W(1~3s) |
On-loadMotorCapacity | 4HP |
Output Frequency Range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz |
MaximumEfficiency | >90% |
No-loadLoss | Non Energy-saving Mode: ≤50W Energy-saving Mode：≤25W (Manual Setup） |
BASIC PARAMETERS | |
Working Temperature Range | -25°C ~ 55°C |
Storage Temperature Range | -25°C ~ 60°C |
Humidity Range | 0~100% |
Waterproof Grade | IP65 |
Product Size | 556*345*182mm |
Product Weight | 19.2Kg |
