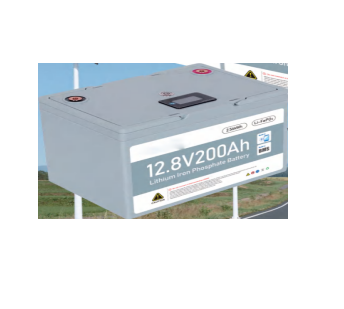

Overview
The product casing adopts the same shape as lead-acid/gelled batteries, uses high-quality lithium iron phosphate cells, and is equipped with an intelligent BMS battery management system, which requires no modification. Change the original installation structure and can quickly replace lead-acid/gel batteries. The lithium iron phosphate battery pack has a long life, high safety performance and good sealing; it is waterproof and Dust-proof and salt-spray-proof performance, suitable for most photovoltaic controllers and inverters, suitable for photovoltaic power generation systems, solar street lights, monitoring systems, ships, etc. Electrical equipment provides efficient energy, effectively reducing operation and maintenance costs.
Parameter
Product model | 12V5AH | 12V8AH | 12V10AH | 12V20AH | 12V30AH | 12V50AH |
Battery capacity | 64Wh | 102Wh | 128Wh | 256Wh | 384Wh | 640Wh |
Standard discharge current | 2.5A | 4A | 5A | 10A | 15A | 25A |
Maximum discharge current | 5A | 8A | 10A | 20A | 30A | 50A |
Operating voltage range | 10-14.6V | |||||
Standard voltage | 12.8V | |||||
Maximum charging voltage | 14.6V | |||||
Discharge depth and life | 80%/25℃/0.5C/6000 cycles, energy retention rate ≥80% | |||||
Working humidity | 65±20%RH | |||||
Operating temperature | 0~+40℃ | |||||
Working altitude | ≤2500m | |||||
Cooling method | Natural cooling | |||||
Protection level | IP65 | |||||
weight | 0.9Kg | 1.2Kg | 1.5Kg | 3.2Kg | 4.5Kg | 9Kg |
Product model | 12V100AH | 12V200AH | 12V300AH | 24V50AH | 24V100AH | 24V200AH |
Battery capacity | 1.28KWh | 2.56KWh | 3.84KWh | 1.28KWh | 2.56KWh | 5.12KWh |
Standard discharge current | 50A | 50A | 50A | 25A | 50A | 50A |
Maximum discharge current | 100A | 100A | 100A | 50A | 100A | 100A |
Operating voltage range | 10-14.6V | 20-29.2V | ||||
Standard discharge voltage | 50A | 25A | 50A | |||
Maximum discharging voltage | 100A | 50A | 100A | |||
Operating voltage | 10-14.6V | 20-29.2V | ||||
Standard voltage | 12.8V | 25.6V | ||||
Maximum charging voltage | 14.6V | 29.2V | ||||
Discharge depth and life | 80%/25℃/0.5C/6000 cycles, energy retention rate ≥80% | |||||
Working humidity | 65±20%RH | |||||
Operating temperature | 0~+40℃ | |||||
Working altitude | ≤2500m | |||||
Cooling method | Natural cooling | |||||
Protection level | IP65 | |||||
size | 255*165*215mm | 480*165*240mm | 515*235*225mm | 305*165*215mm | 480*165*240mm | 635*245*220mm |
weight | 16Kg | 28Kg | 45Kg | 20Kg | 30Kg | 40Kg |
