A dry-type distribution transformer is a type of transformer that uses air rather than liquid for cooling. It is commonly used in commercial, industrial, and utility applications for distributing electrical energy. Here’s an overview of its key aspects:

Structure and Components

1. Core: Made of high-grade silicon steel laminations to minimize losses.

2. Windings: Typically made of copper or aluminum, insulated with materials like epoxy resin or varnish.

3. Insulation: Uses air as the primary cooling medium. The windings are coated with epoxy resin, providing insulation and protection against moisture and contaminants.

Types of Dry-Type Transformers

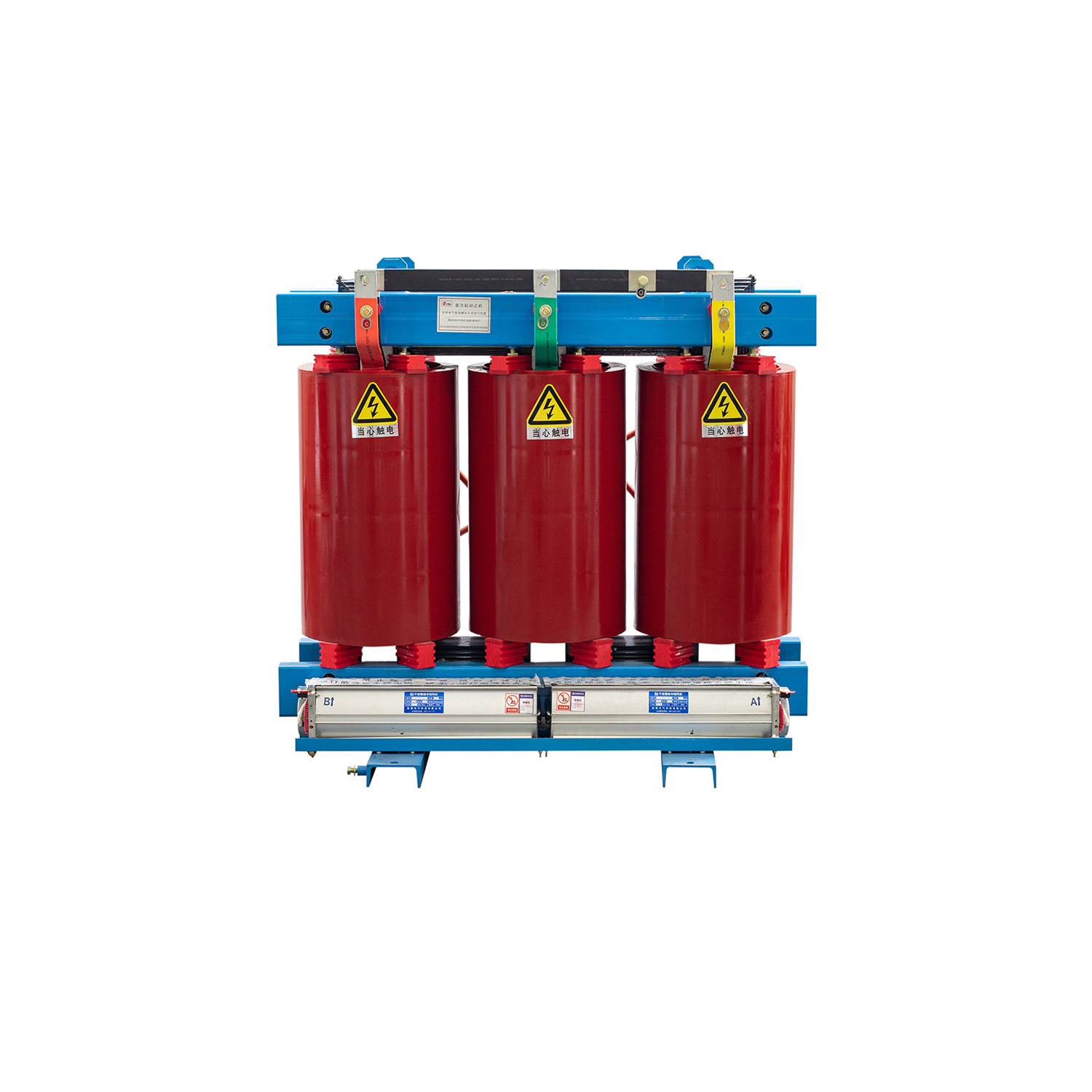

1. Cast Resin Transformers (CRT): Windings are encapsulated in epoxy resin, providing excellent protection and reliability.

2. Vacuum Pressure Impregnated (VPI): Windings are impregnated with varnish under vacuum pressure, offering good mechanical strength and moisture resistance.

Applications

1. Commercial Buildings: Used for distributing power within buildings, providing reliable and safe electricity.

2. Industrial Facilities: Employed in factories and plants where safety and low maintenance are crucial.

3. Renewable Energy: Used in wind and solar power installations due to their environmental benefits.

4. Utilities: Employed in substations and distribution networks for reliable power delivery.

Standards and Regulations

Dry-type transformers must comply with various international standards, such as:

· IEEE C57.12.01: General requirements for dry-type transformers.

· IEC 60076-11: Specifications for dry-type transformers.

· ANSI/NEMA ST 20: Dry-type transformers for general applications.

Maintenance and Testing

· Routine Inspections: Visual checks for physical damage, dust accumulation, and signs of overheating.

· Electrical Testing: Regular testing of insulation resistance, winding resistance, and transformer turns ratio (TTR).

· Thermal Imaging: Used to detect hot spots and ensure proper cooling.

Dry-type distribution transformers provide a safe, reliable, and environmentally friendly solution for power distribution across various applications.
