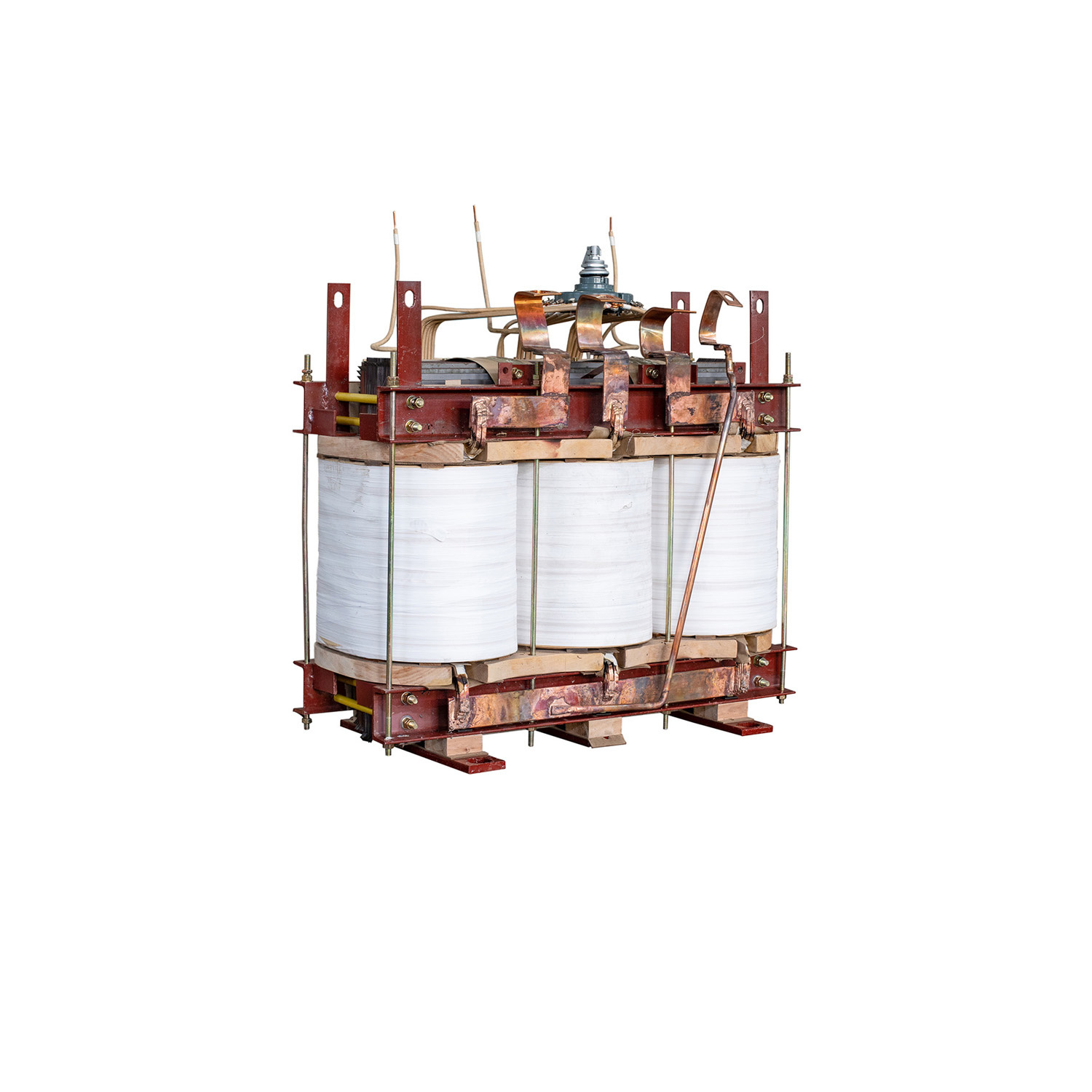

Environment-friendly dry-type transformers are designed to reduce environmental impact and improve safety and efficiency in electrical power distribution. The installation and maintenance of environment-friendly dry-type transformers are crucial for ensuring their optimal performance and longevity. Here are the detailed steps and considerations:

Installation

1. Site Selection:

   - Indoor Installation: Ensure the area is well-ventilated, clean, and free from dust and corrosive substances. Adequate space should be available for heat dissipation.

   - Outdoor Installation: Use weatherproof enclosures to protect the transformer from environmental elements such as rain, snow, and dust.

2. Foundation:

   - Prepare a sturdy, level foundation to support the weight of the transformer. It should be vibration-free and capable of handling the load.

   - Ensure proper clearance around the transformer for maintenance access and cooling.

3. Mounting:

   - Secure the transformer to the foundation using appropriate mounting brackets or bolts to prevent movement and ensure stability.

   - Install vibration dampers if necessary to reduce noise and vibration.

4. Ventilation:

   - For natural air-cooled units, ensure that there is sufficient airflow around the transformer. Avoid obstructing ventilation grilles or openings.

   - For forced air-cooled units, ensure that the cooling fans or blowers are operational and properly connected.

5. Electrical Connections:

   - Follow the manufacturer’s guidelines for making primary and secondary electrical connections.

   - Use proper cable sizes and types to handle the electrical load and ensure secure, tight connections to prevent overheating.

6. Grounding:

   - Properly ground the transformer to ensure safety and prevent electrical faults. Follow local electrical codes and standards for grounding practices.

7. Inspection:

   - Before energizing the transformer, conduct a thorough inspection to ensure all connections are secure, and there are no signs of damage or defects.

Maintenance

1. Regular Inspections:

   - Conduct periodic visual inspections to check for signs of wear, damage, or overheating.

   - Inspect and clean the ventilation system to ensure proper airflow and cooling.

2. Cleaning:

   - Keep the transformer and surrounding area clean and free from dust and debris. Use dry, lint-free cloths or vacuum cleaners for cleaning.

   - Avoid using water or liquid cleaners, as they can damage the insulation.

3. Thermal Monitoring:

   - Regularly monitor the temperature of the transformer using infrared thermography or built-in temperature sensors.

   - Ensure that the temperature remains within the manufacturer’s specified range.

4. Electrical Testing:

   - Perform regular electrical tests, such as insulation resistance tests, to ensure the integrity of the insulation system.

   - Check the condition of electrical connections and tighten any loose connections.

5. Cooling System Maintenance:

   - For forced air-cooled transformers, inspect and clean the cooling fans or blowers. Replace any faulty components as needed.

   - Ensure that the cooling system operates efficiently to prevent overheating.

6. Record Keeping:

   - Maintain detailed records of all inspections, tests, and maintenance activities. This helps in tracking the condition of the transformer and planning future maintenance.

7. Manufacturer’s Guidelines:

   - Follow the manufacturer’s maintenance recommendations and guidelines. This ensures that the transformer operates within its designed parameters and maintains its warranty.

8. Professional Servicing:

   - Engage qualified professionals for any major maintenance or repair work. This ensures that the transformer is serviced correctly and safely.

By adhering to these installation and maintenance practices, environment-friendly dry-type transformers can provide reliable and efficient service while minimizing environmental impact and ensuring safety.
