Features

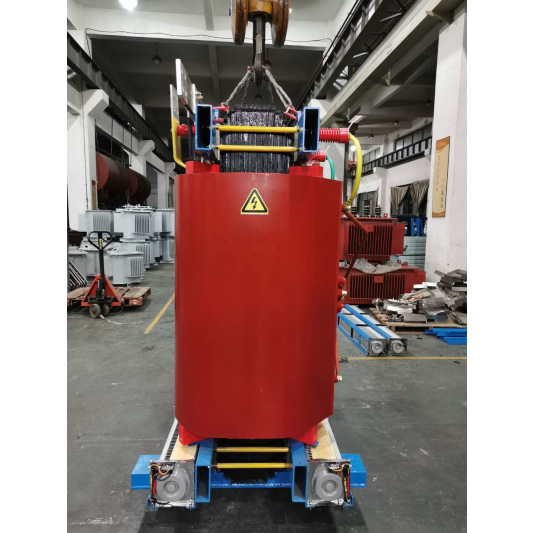

1. The high-voltage winding is made of enameled copper wire, and the low-voltage winding is made of copper foil. The high-voltage winding is filled with glass fiber mat and cast with imported epoxy resin without filler in a vacuum state. After curing, it forms a solid whole with high mechanical strength, no partial discharge and high reliability.

2. Combustion-combustion, explosion-proof, non-polluting environment, environmentally friendly, can be installed in load centers.

3. The coil does not absorb moisture, and the core and clamps have been treated with special processes and can operate in 1oo% relative humidity and other harsh environments. Intermittent operation does not require dehumidification treatment.

4. High resistance to short circuit, lightning impact, and large overload capacity.

5. The resin insulation layer inside and outside the coil is thin and has good heat dissipation performance. The cooling method generally adopts natural air cooling (an). An air cooling system (af) can be configured for transformers of any protection level.

6. Low loss, good power saving effect, economical operation and maintenance-free.

7. Small size, light weight, small footprint and easy installation.

8. As a new generation product of dry-type transformers, sc(b) type dry-type transformers are suitable for power supply in the following places: high-rise buildings, commercial centers, theaters, hospitals, industrial and mining enterprises, offshore oil drilling platforms, ships, subways, stations , airports, power plants, residential areas and high-rise buildings, etc.
