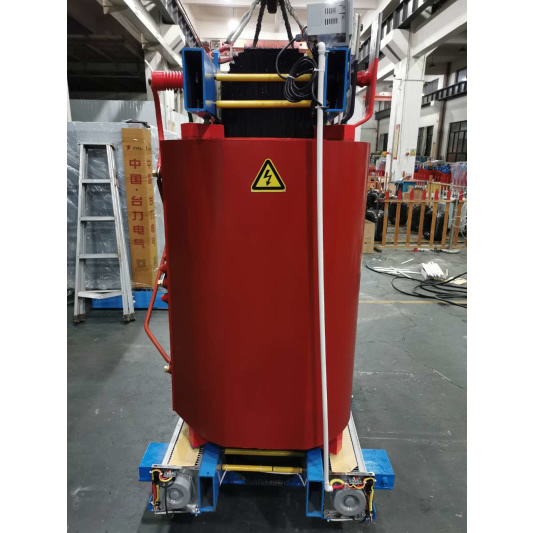

A three-phase dry-type distribution transformer is a type of electrical transformer that converts high-voltage electricity to a lower voltage suitable for distribution to homes and businesses. Unlike oil-filled transformers, dry-type transformers use air or other environmentally friendly insulation systems to cool the windings and core. Here’s an overview of its components, advantages, applications, and operation principles:

Components

1. Core: Typically made of laminated silicon steel, which reduces energy losses due to eddy currents and hysteresis.

2. Windings: Made of copper or aluminum, the windings are insulated with materials such as epoxy resin or Nomex.

3. Insulation: Utilizes air, vacuum, or solid insulation systems to ensure electrical separation and cooling.

4. Enclosure: Provides protection from the environment and can be ventilated or completely enclosed for additional protection.

Advantages

1. Safety: There’s no risk of oil leaks or fires, making it safer for indoor use.

2. Environmental Friendliness: No oil means there’s no risk of contamination from leaks.

3. Low Maintenance: With fewer moving parts and no oil to manage, dry-type transformers require less maintenance.

4. Installation Flexibility: Can be installed in various locations including buildings, rooftops, and underground.

5. High Reliability: Resistant to short circuits and voltage spikes.

Types of Dry-Type Transformers

1. Cast Resin Transformers: Windings are encapsulated in epoxy resin, providing excellent moisture and environmental resistance.

2. Vacuum Pressure Impregnated (VPI) Transformers: Windings are impregnated with varnish in a vacuum, offering good dielectric and thermal performance.

3. Ventilated Dry-Type Transformers: Use air for cooling and are suitable for indoor use in controlled environments.

Maintenance Tips

1. Regular Inspection: Visual inspections for signs of wear, dust accumulation, and moisture.

2. Cleaning: Keep the transformer clean to ensure efficient cooling.

3. Thermal Imaging: Use thermal imaging to detect hotspots and potential issues.

4. Electrical Testing: Perform regular tests such as insulation resistance and turns ratio testing.

Conclusion

Three-phase dry-type distribution transformers are a reliable and safe choice for a wide range of applications. Their environmental friendliness, low maintenance requirements, and installation flexibility make them ideal for modern electrical distribution needs.
