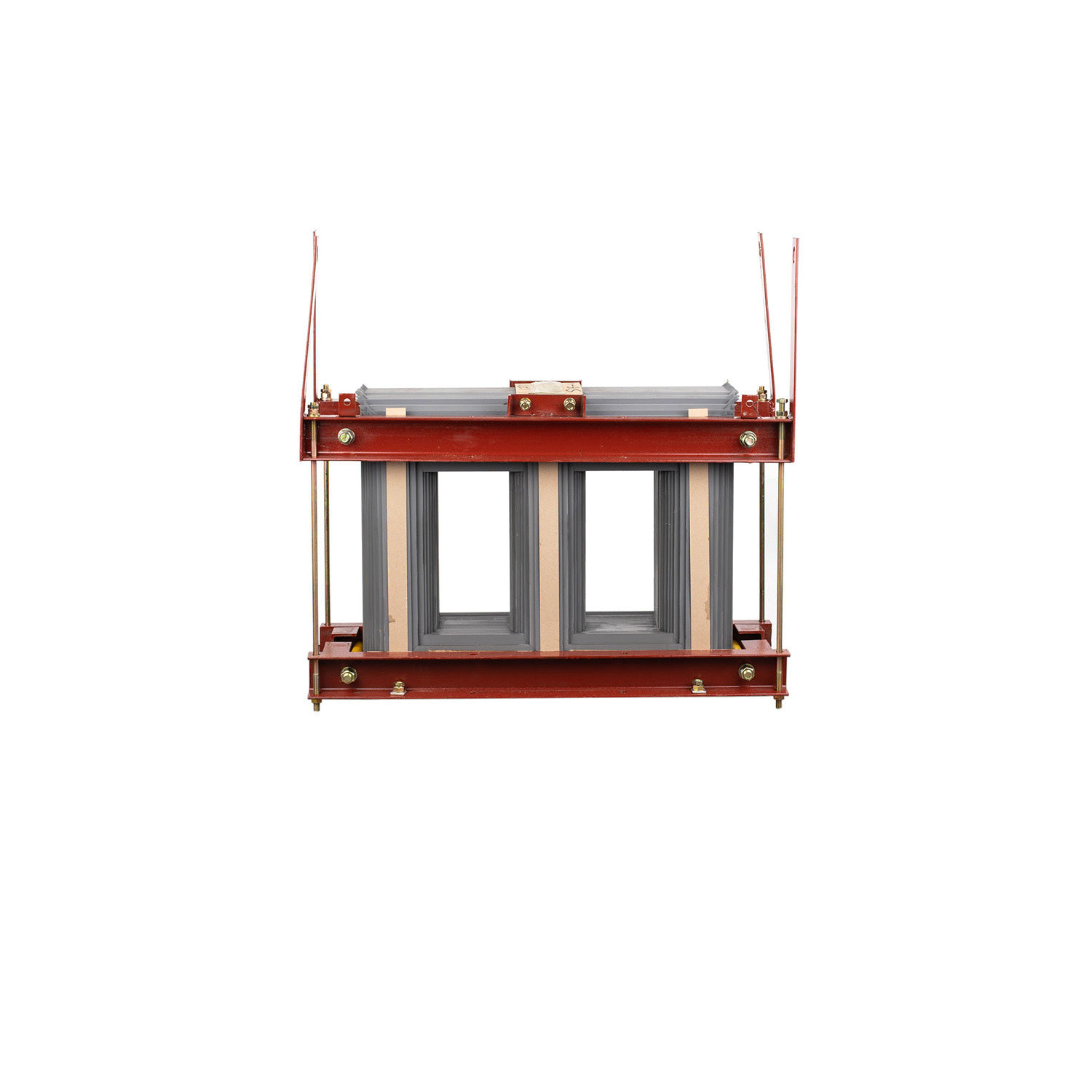

The core of a dry-type transformer plays a critical role in its operation, serving several essential functions:

1. Magnetic Path

- Function: The core provides a low-reluctance path for the magnetic flux generated by the alternating current (AC) in the transformer's windings.

- Benefit: This ensures efficient magnetic coupling between the primary and secondary windings, which is necessary for effective voltage transformation.

 2. Induction of Voltage

- Function: The core facilitates the induction of voltage in the secondary winding due to the changing magnetic field created by the AC in the primary winding.

- Benefit: This allows the transformer to step up or step down the voltage as required by the application.

 3. Minimization of Energy Losses

- Function: The core is typically made from laminated sheets of silicon steel or other magnetic materials to minimize eddy current losses and hysteresis losses.

- Benefit: Reduced energy losses lead to higher efficiency and lower operational costs.

 4. Structural Support

- Function: The core provides structural support for the windings, maintaining their position and integrity.

- Benefit: This ensures the mechanical stability and longevity of the transformer.

5. Heat Dissipation

- Function: The core aids in the dissipation of heat generated during operation, although the primary cooling mechanism is through air (natural or forced).

- Benefit: Efficient heat dissipation helps maintain optimal operating temperatures and prevents overheating, which can damage the transformer.

6. Reduction of Noise

- Function: The core's construction and materials can influence the operational noise levels of the transformer.

- Benefit: A well-designed core can help reduce vibration and humming noises, contributing to a quieter operation.

 7. Electromagnetic Shielding

- Function: The core can act as a shield to contain the magnetic field within the transformer.

- Benefit: This minimizes electromagnetic interference (EMI) with nearby electronic equipment and systems.

 Key Characteristics of a Dry-type Transformer Core:

- Material: Typically made from high-quality, grain-oriented silicon steel with a high magnetic permeability to enhance efficiency.

- Lamination: The core is constructed from thin laminated sheets to reduce eddy current losses. Each lamination is insulated from the others to minimize these currents.

- Shape: Common shapes include E-I and toroidal (ring) cores, each offering different benefits in terms of efficiency, size, and application suitability.

- Assembly: The core is assembled to ensure a tight magnetic coupling between the primary and secondary windings, which is critical for efficient operation.

Understanding the function and importance of the core in a dry-type transformer highlights its role in ensuring efficient energy transfer, minimizing losses, and maintaining the transformer's overall performance and reliability.
