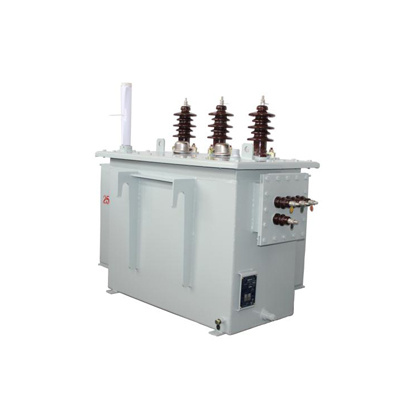

An oil-immersed distribution transformer is a type of electrical transformer that uses oil as both an insulating and cooling medium. These transformers are widely used in power distribution systems to step down high voltage electricity to a lower voltage suitable for consumer use. The oil inside the transformer serves to insulate the windings and core, as well as to dissipate the heat generated during operation. Here’s an introduction to their components, advantages, applications, and operation principles:

Components

1. Core: Typically made of laminated silicon steel to minimize eddy current and hysteresis losses.

2. Windings: Made of copper or aluminum, these windings are immersed in insulating oil to ensure electrical insulation and cooling.

3. Insulating Oil: Mineral oil or synthetic oil is used to insulate the windings and core and to transfer heat away from the transformer.

4. Tank: A sealed container that holds the core, windings, and oil. It is designed to be leak-proof and robust to withstand environmental conditions.

5. Radiators/Cooling Fins: Attached to the tank to increase the surface area for cooling, facilitating heat dissipation.

6. Conservator: A small tank mounted above the main tank that accommodates oil expansion and contraction due to temperature changes.

7. Breather: Contains silica gel to absorb moisture from the air, ensuring the oil remains dry.

8. Buchholz Relay: A safety device that detects gas accumulation and oil flow issues within the transformer, indicating potential faults.

Advantages

1. High Efficiency: Excellent cooling capabilities allow for efficient operation under various load conditions.

2. Durability: Oil provides effective insulation and cooling, extending the transformer’s lifespan.

3. Cost-effective: Generally cheaper to manufacture and maintain compared to some dry-type transformers.

4. High Reliability: Can handle overloads and short circuits effectively, ensuring reliable operation.

5. Better Heat Dissipation: Oil immersion facilitates effective heat transfer, maintaining optimal operating temperatures.

Maintenance Tips

1. Regular Oil Testing: Monitor the condition of the insulating oil for moisture, acidity, and other contaminants.

2. Visual Inspection: Check for oil leaks, rust, and other physical damage to the tank and radiators.

3. Oil Level Monitoring: Ensure the oil level in the conservator tank is within the specified range.

4. Breather Maintenance: Replace the silica gel in the breather periodically to maintain its effectiveness.

5. Electrical Testing: Perform routine tests such as insulation resistance and turns ratio tests to ensure proper operation.

Conclusion

Oil-immersed distribution transformers are essential components in modern power distribution networks, known for their efficiency, reliability, and cost-effectiveness. Their ability to effectively manage heat dissipation and provide robust insulation makes them ideal for a wide range of applications, from residential and commercial use to industrial and renewable energy projects. Regular maintenance and monitoring are crucial to ensure their long-term performance and safety.
