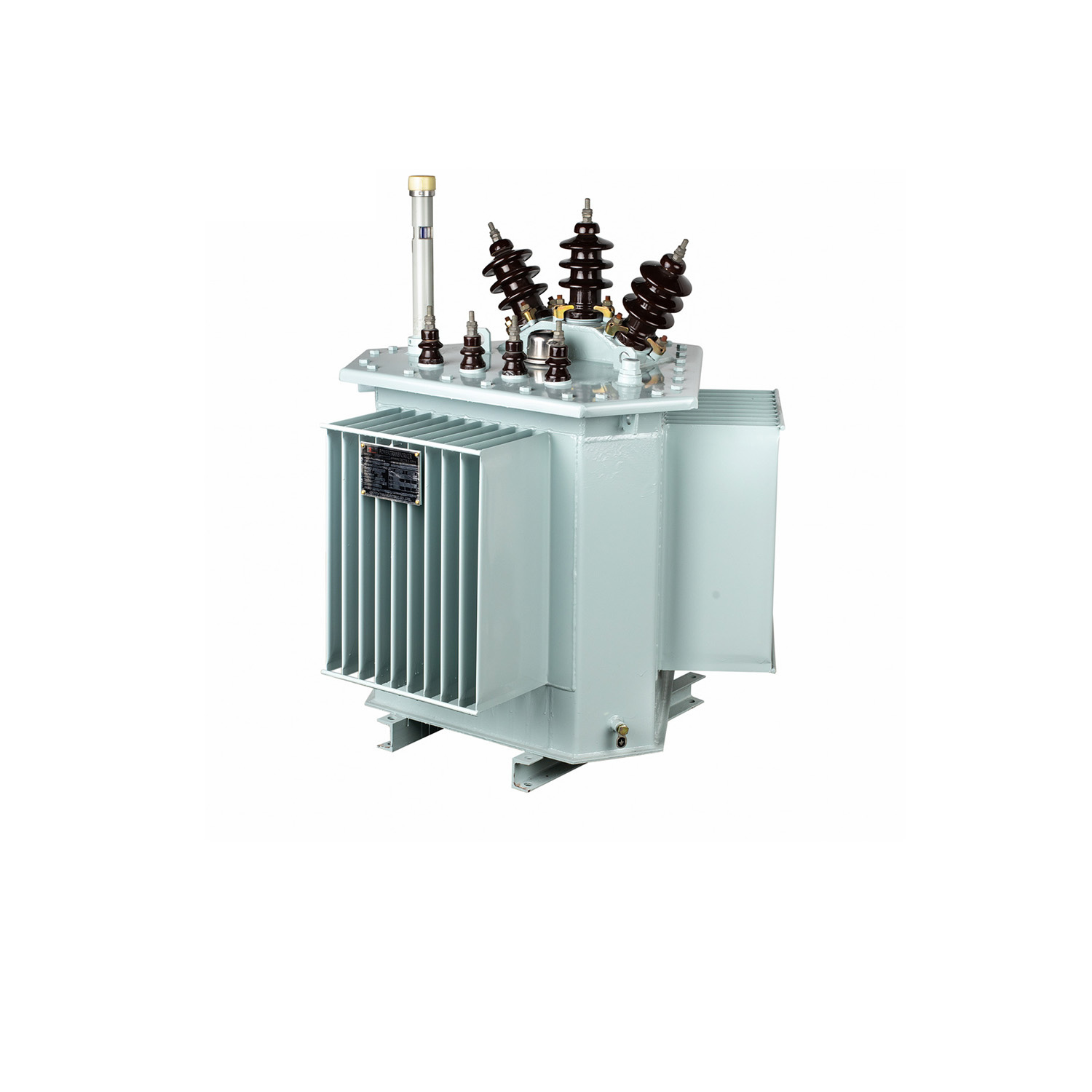

A new type of three-dimensional (3D) core oil-immersed distribution transformer represents an advanced design in transformer technology. This innovation aims to improve efficiency, reduce losses, and enhance the overall performance of distribution transformers. Here are some key aspects and benefits of this new type of transformer:

Key Aspects

Three-Dimensional Core Design:

Geometry: The 3D core design involves a more complex geometric configuration compared to traditional laminated cores. This can include shapes like triangular, tetrahedral, or other 3D configurations.

Magnetic Flux Distribution: The 3D design allows for a more uniform distribution of magnetic flux, reducing core losses and improving efficiency.

Enhanced Cooling System:

Oil Immersion: As with traditional oil-immersed transformers, this type uses insulating oil for cooling and dielectric purposes.

Improved Heat Dissipation: The 3D core design can enhance heat dissipation, as the unique geometry provides better surface area contact with the cooling oil.

Advanced Materials:

High-Quality Steel: The core is made from high-grade silicon steel or other advanced magnetic materials to minimize losses.

Insulation Materials: Use of advanced insulation materials that can withstand higher temperatures and provide better electrical insulation.

Compact and Lightweight:

Design Efficiency: The 3D core design can lead to a more compact and lightweight transformer, reducing space requirements and making installation easier.

Reduced Losses:

Core Losses: The innovative core design reduces both hysteresis and eddy current losses, leading to higher efficiency.

Load Losses: Optimized winding design and improved cooling reduce load losses, further enhancing overall performance.

Benefits

Higher Efficiency:

The reduction in core and load losses leads to higher overall efficiency, reducing energy waste and operational costs.

Improved Reliability:

Better heat dissipation and advanced materials contribute to a longer lifespan and greater reliability of the transformer.

Environmentally Friendly:

Higher efficiency and reduced losses mean lower greenhouse gas emissions, contributing to environmental sustainability.

Cost Savings:

While the initial cost may be higher due to advanced materials and design, the long-term operational savings and extended lifespan provide significant cost benefits.
