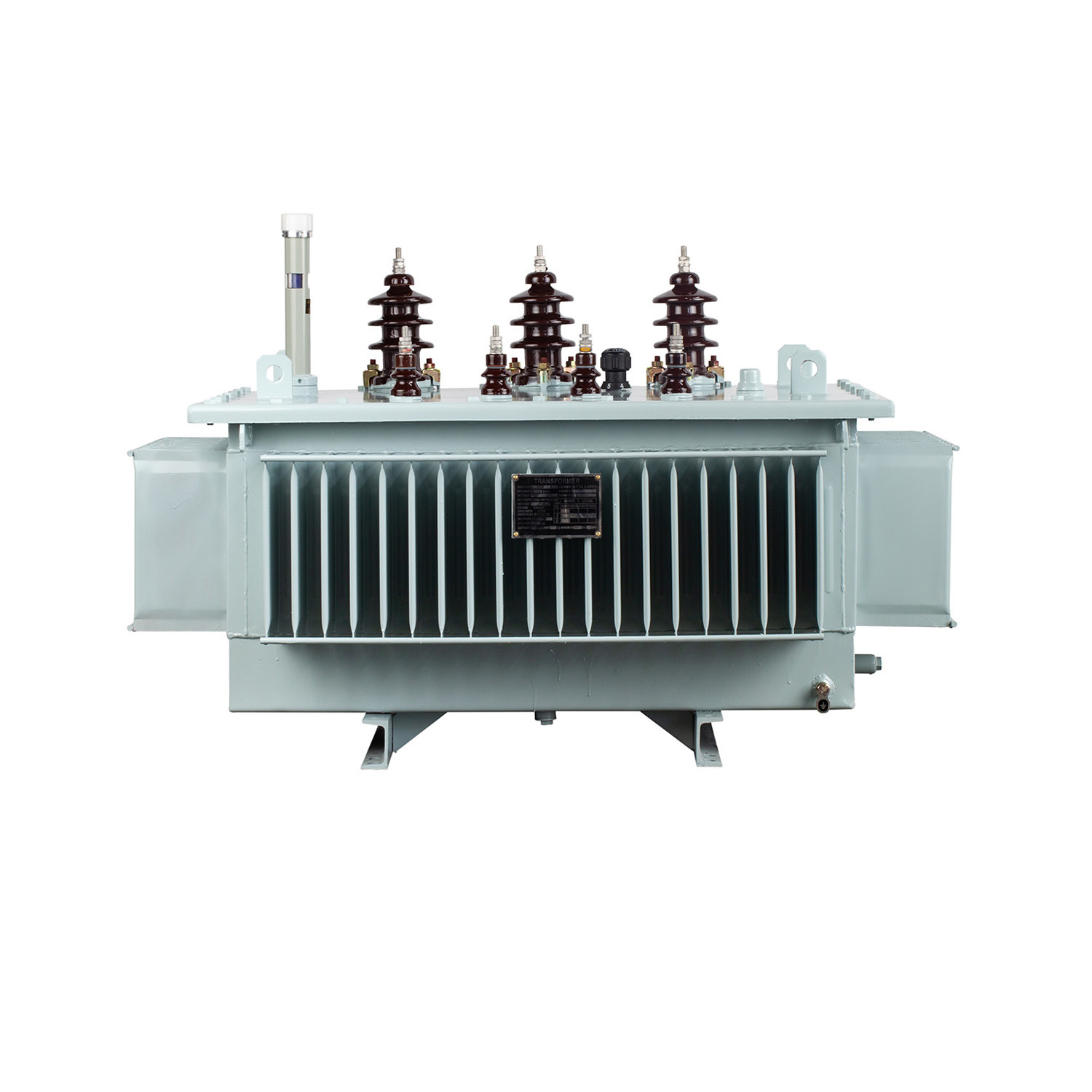

An amorphous alloy iron core transformer represents a significant advancement in transformer technology, offering various benefits in terms of efficiency, energy savings, and environmental impact. Here’s a detailed overview of this type of transformer:

Key Aspects

Amorphous Alloy Core:

Material: The core is made from amorphous metal, a non-crystalline material with a disordered atomic structure. This differs from traditional silicon steel cores that have a crystalline structure.

Magnetic Properties: Amorphous metals have lower magnetic losses (hysteresis and eddy current losses) due to their unique structure, leading to higher efficiency.

Core Construction:

Lamination: The core is constructed from thin ribbons of amorphous metal, laminated together to form the core. This reduces eddy current losses significantly.

Geometry: The core geometry can vary, but it typically aims to optimize the magnetic path and reduce losses.

Oil Immersion:

Cooling and Insulation: As with traditional oil-immersed transformers, insulating oil is used for cooling and electrical insulation. The oil helps to dissipate heat generated during operation and insulates the internal components.

Windings:

Primary and Secondary: The transformer windings are typically made from copper or aluminum, and they are wound around the core to create the primary and secondary circuits.

Insulation: The windings are insulated with materials that can withstand high temperatures and provide reliable electrical insulation.

Benefits

High Efficiency:

Reduced Core Losses: The use of amorphous metal in the core significantly reduces core losses compared to traditional silicon steel cores, leading to higher efficiency.

Energy Savings: Higher efficiency translates to lower energy losses, which results in energy savings over the transformer's lifespan

Environmental Impact:

Lower Emissions: Reduced energy losses mean lower carbon emissions, contributing to environmental sustainability.

Recyclability: Amorphous metals and other materials used in these transformers can be recycled, further reducing environmental impact.

Improved Performance:

Lower Operating Temperature: Reduced losses result in lower operating temperatures, which can extend the lifespan of the transformer.

Enhanced Reliability: The advanced materials and design contribute to greater reliability and reduced maintenance needs.

Cost Savings:

Operational Costs: Despite a potentially higher initial cost, the reduced energy losses and lower maintenance requirements lead to significant savings in operational costs.
