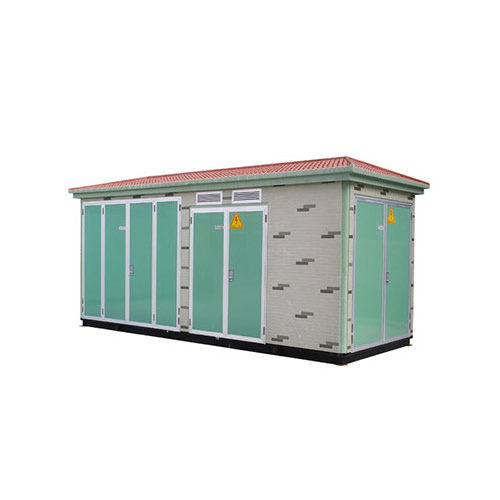

YB25-10 series combined substation is used in 50Hz, 6-10KV network, with a rated capacity of 30-2000KV independent complete power transformation and distribution device. It is suitable for urban high-rise buildings, residential areas, factories and mines, hotels, parks, oil fields, airports , docks, railways, shopping malls and temporary facilities and other outdoor power supply places. This product can be used in the power distribution system of ring network power supply, and can also be used as terminal power supply in the central radial power grid.

ZBW15-10 series combined substation is composed of three parts: transformer room, high voltage room and low voltage room.

The high-voltage side generally uses HXGN series ring network cabinets (gas production, air pressure, vacuum, SF6) equipped with load switches and fuses (circuit breakers are available upon request).

The low-voltage side adopts the latest plastic shell type automatic air opening magnet, which has high breaking capacity and good protection performance.

The transformer can be either an oil-immersed transformer or a dry-type transformer.

The shell is available in a variety of materials including aluminum alloy plate, steel plate, composite plate and so on. Lined with thermal insulation material, the top cover is double-layered to effectively prevent heat radiation.

The box is equipped with cooling facilities and anti-condensation equipment.
