1.Overview

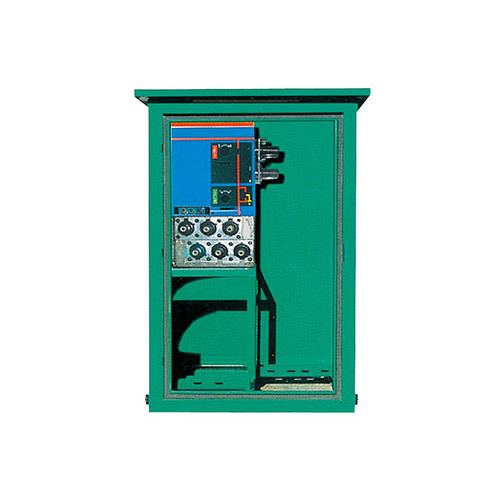

DFW□-12 series cable tap box with SF6 load switch (hereinafter referred to as cable tap box) is used for tapping power cables with AC 50Hz, rated voltage 12kV, and rated current 630A. Our company specializes in the production of European-style cable distribution boxes, American-style cable distribution boxes with switches, cable distribution boxes, etc. Because the sulfur hexafluoride load switch, switch cabinet shell, cable branch box shell, and cable head are all independently produced by our company Production, quality and cost can be better controlled, so the quality is more reliable and the price is more favorable. DFW4-12 ordinary high-voltage cable distribution box can be divided into single-ended incoming and outgoing lines and double-ended incoming and outgoing lines. According to the number of incoming and outgoing lines, it can be divided into three branches, four branches, five branches, six branches, etc. This product and accessories are mainly divided into There are two types: 200A and 600A, and can be combined into various specifications such as one in and one out, one in and two out, two in and two out, two in and four out according to user needs. It has the characteristics of fully sealed, fully insulated, maintenance-free, corrosion-resistant, compact structure, easy to install, etc., and is suitable for various environments. And there is a flexible way of incoming and outgoing line assembly. The main purpose

2、Model and meaning

D F W □-12
││││ │
││││ │
││││ │
││││ └────rated voltage
││││
│││└───────design number
│││
││└────────outdoor
│└─────────distribution
└──────────cable

3. Main features

a. Anti-pollution and anti-corrosion;

b. Fully sealed, fully insulated, maintenance-free;

c. Equipped with SF6 ring network type load switch inflatable cabinet;

d. Equipped with touchable silicone rubber cable plug;

e. Can satisfy centralized power supply for local user groups;

f. It has all the characteristics of ordinary cable distribution box;

g. Can be equipped with electric operating mechanism;

h. CT and PT interfaces can be reserved for distribution network automation.

◆Fully insulated, fully sealed, anti-condensation;

◆The incoming line can be equipped with a three-station SF6 load switch or circuit breaker;

◆The incoming and outgoing lines are separated on the left and right, which is safe and reliable;

◆Can be equipped with electric operating mechanism and reserved automation interface;

◆Landscape design;

◆The wiring is reliable and convenient, and the incoming and outgoing lines can be equipped with anti-interference fault indicators.

4. Ordering Instructions

Please indicate the branch box model when ordering (refer to the model description);

Box material (stainless steel recommended) and color (white, military green, dark green or other colors)
