Purpose

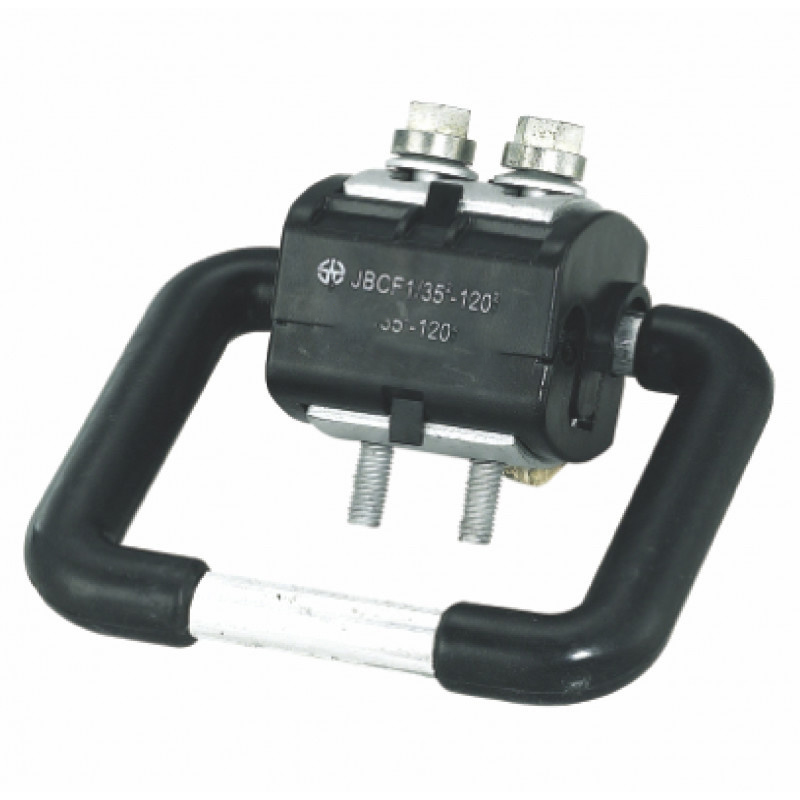

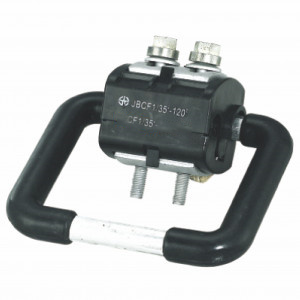

JBCF series insulation puncture clamps are suitable for grounding protection in high and low voltage insulated lines. The wire clamp has special contact teeth to ensure the best contact surface. It is also suitable for over-connection of copper and aluminum. The insulating shell and insulating silicone grease cooperate with each other and cover the insulated wire to provide insulation and waterproofing.

Precautions

1. The conductors using puncture clamps must comply with national standards (not applicable to flame-retardant insulated cables);

2. The wires must not be bent at the installation location;

3. The installer of the puncture clamp must be proficient in installation technology;

4. When operating with electricity, please wear insulating gloves and use an insulating sleeve wrench;

5. The puncture clamp is a disposable product, please do not reuse it after disassembly.

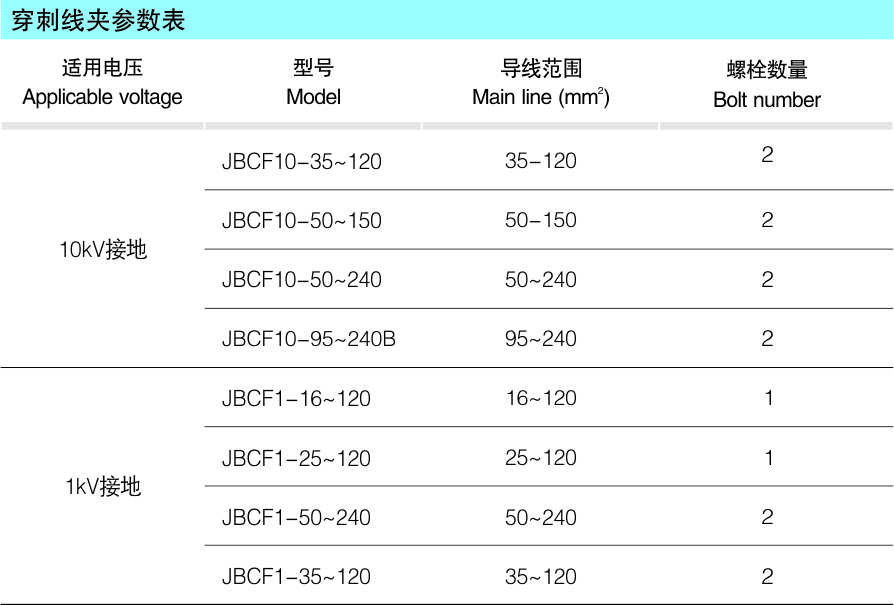

Note: B is sheathed type. If the customer needs to use vertically erected overhead insulated conductor puncture type grounding protection, please indicate side grounding when ordering.

And add "C" after the model number. Such as: JBCF10-50~240C.
